Powerful narrow new 5ML from John Deere

With the new 5ML Series, including flagship 5130ML, John Deere introduces powerful narrow tractors for use in high-value crops. The 5ML tractors can be equipped with a comprehensive John Deere technology package for precision farming and deliver a maximum output of 134 hp.

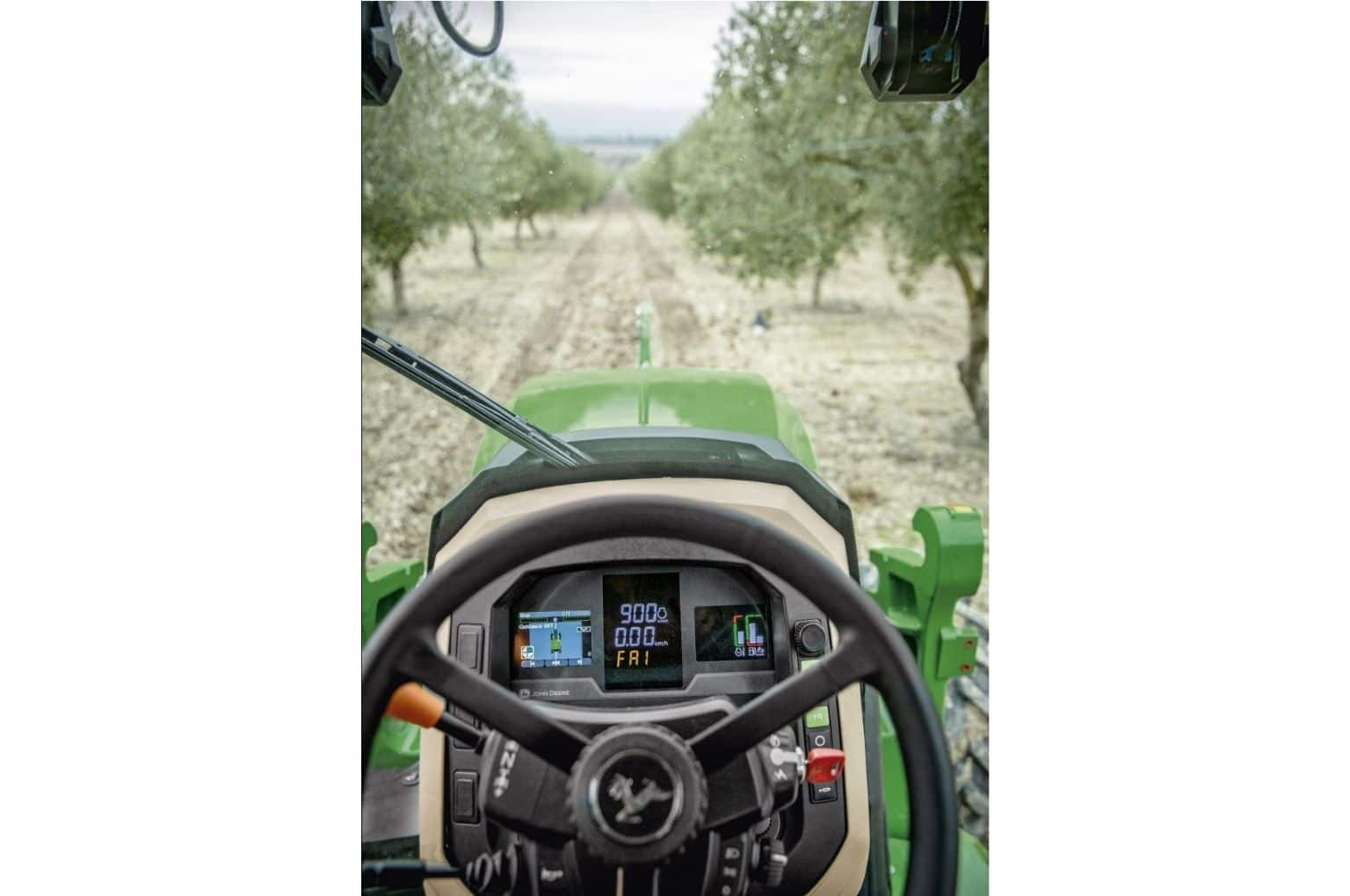

To make working with specialty crops easier, the 5ML offers a comprehensive John Deere technology package for precision farming. A unique feature is the integrated AutoTrac guidance system. The AutoTrac display has been integrated directly into the tractor’s dashboard, eliminating the need for an additional activation or display. Above all, this saves additional costs. With its equipment, the 5ML makes it possible to combine different work steps. The integrated guidance system enables the driver to deliver a high quality of work even on long days. He can fully concentrate on the  implements as the tractor itself stays on track.

Data monitored

Due to political measures, farmers have to document their work processes in increasing detail, which means additional effort. With the optionally available Gen 4 display on the 5ML, every step of the tractor’s work can be easily documented and securely transferred to the John Deere Operations Centre, which is available free of charge. Here, all operations can be monitored, planned and analysed, enabling the farmer to make informed agronomic decisions. With 1ClickGo AutoSetup from John Deere, settings for the documentation and execution of the work steps, such as an application rate for a crop protection measure, can be set up via the Operations Center. As soon as the tractor enters the respective field, the defined job appears on the display. All the driver has to do is confirm and start working. 1ClickGo AutoSetup thus saves set-up time and ensures error-free documentation. Via the John Deere Operations Center, the 5ML can be connected to software applications from partner companies that enable site-specific farming specifically for high-value crops. This allows the targeted use of inputs, which reduces production costs. The 5ML is a pioneer in precision farming for high value crops. Furthermore, John Deere’s Connected Support can maximise the uptime of the 5ML. With the customer’s explicit consent, machine data is analysed remotely while the 5ML is in operation. If an irregularity is detected, the local John Deere dealer is automatically informed. They then notify the customer of the impending malfunction before the machine’s performance is affected.

Strongest of the narrow John Deere tractors

The John Deere PowerTech Plus engine in the new 5130 ML is a 4.5-litre four-cylinder with a solid torque rise of 30% and a maximum output of 134 hp. The mechanical PowerQuad Plus transmission has four of the optionally available Powr8 transmission with eight power shiftable gears. When range shifting, the matching powershift gear is automatically selected. This and the no-clutch range shifting with the de-clutch button makes the tractor stand out in terms of comfort.

The 5ML not only impresses with its engine power, but also with its hydraulic output of 117 l/min. This allows implements with high hydraulic power requirements to be connected directly to the tractor hydraulics without the need for an externally PTO-driven hydraulic pump. Furthermore, a combination of different applications is possible. Time can be saved by, for example, pruning trees and tilling the soil at the same time. In addition, the tractor is ready for use with front loaders.

A special feature is the outstanding lift capacity of the 5ML, which totals 4900 kg at the ball ends of the rear hydraulics. At the front hydraulics it is 2900 kg, with a payload of 3500 kg. Combining a high payload with maximum lifting capacity enables the attachment of large implements, which increases the effectiveness and productivity.

Furthermore, the 5ML has a rugged design. Fenders, fuel tank and rear taillight enclosure, as well as the door seals, are made of steel and are therefore particularly robust. Smooth edges in the design ensure that crops are not damaged when driving through narrow stands.

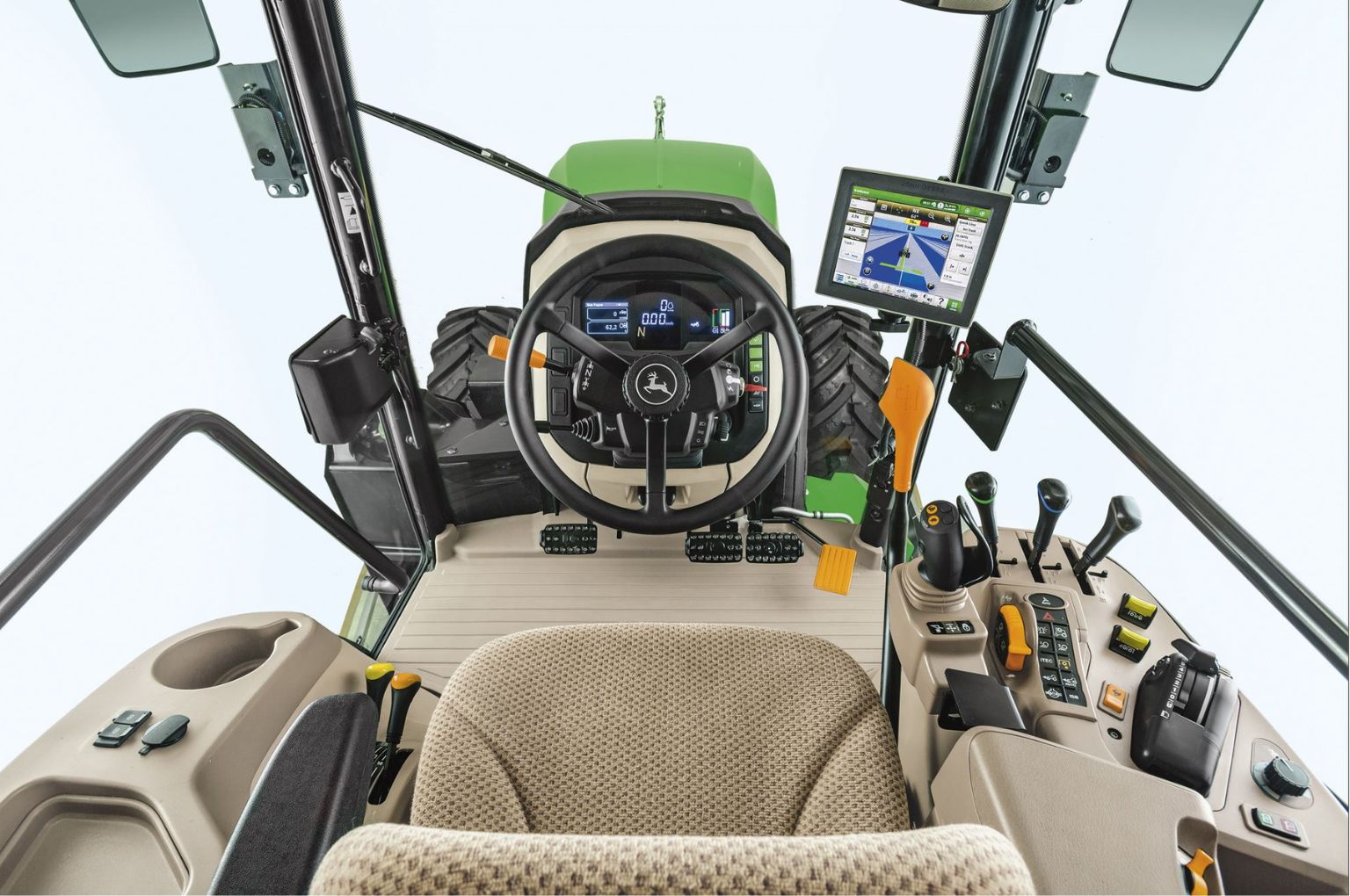

Safety and comfort of use The 5ML’s cab is equipped with an electronic joystick and a large LCD display in the dashboard. This provides an excellent overview of the tractor settings and increases operator comfort. The electronic joystick makes it easy and convenient to control implements. With the iTec headland management function, the driver is noticeably relieved by the automation of the work processes when turning at the headland. The category 4 cab filter system (according to EN 15695) integrated into the roof of the driver’s cab is available as an option and provides protection against dust, aerosols and vapours that are hazardous to health.
