Mowing and swathing in one pass

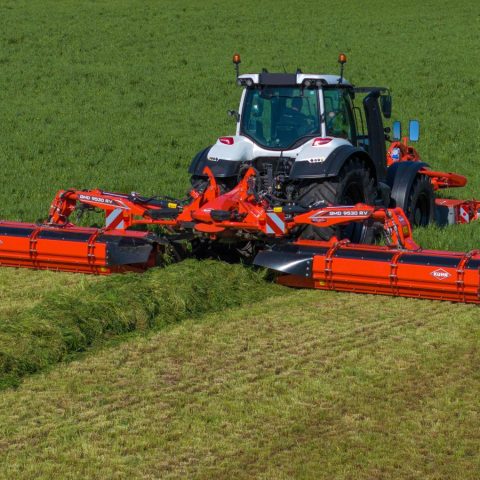

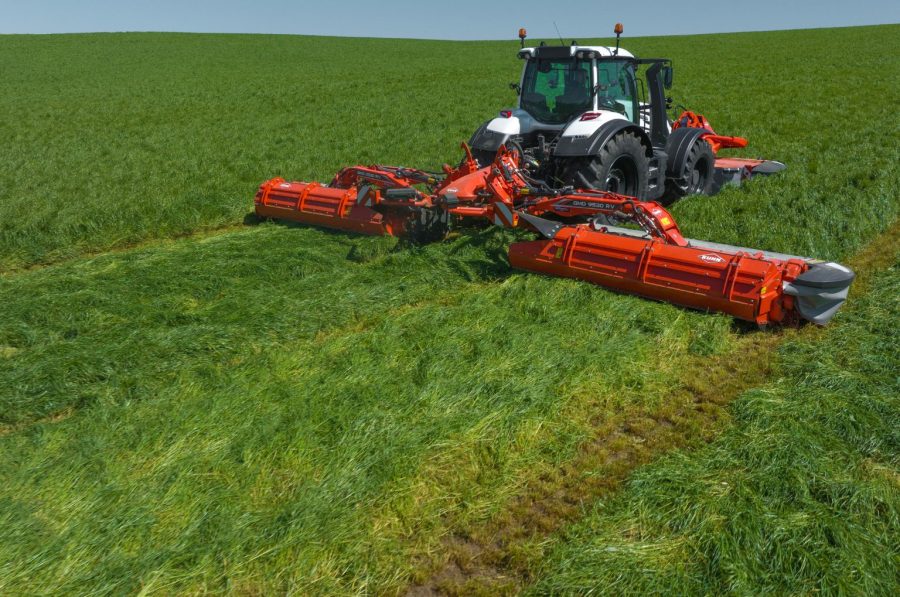

The new Kuhn GMD 9530 RV disc mower with conveying auger grouper, offers the possibility of mowing and delivering a swath in one pass without a conditioning system, thus increasing productivity while reducing costs. The compact design of the machine ensures optimal maneuverability both during transport and at work. Also, its limited weight is well […]
The new Kuhn GMD 9530 RV disc mower with conveying auger grouper, offers the possibility of mowing and delivering a swath in one pass without a conditioning system, thus increasing productivity while reducing costs.

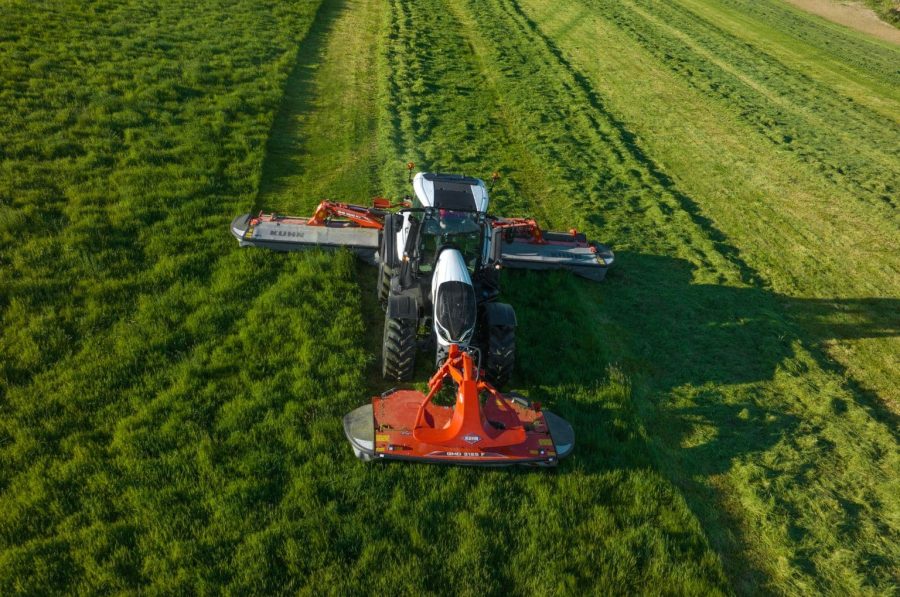

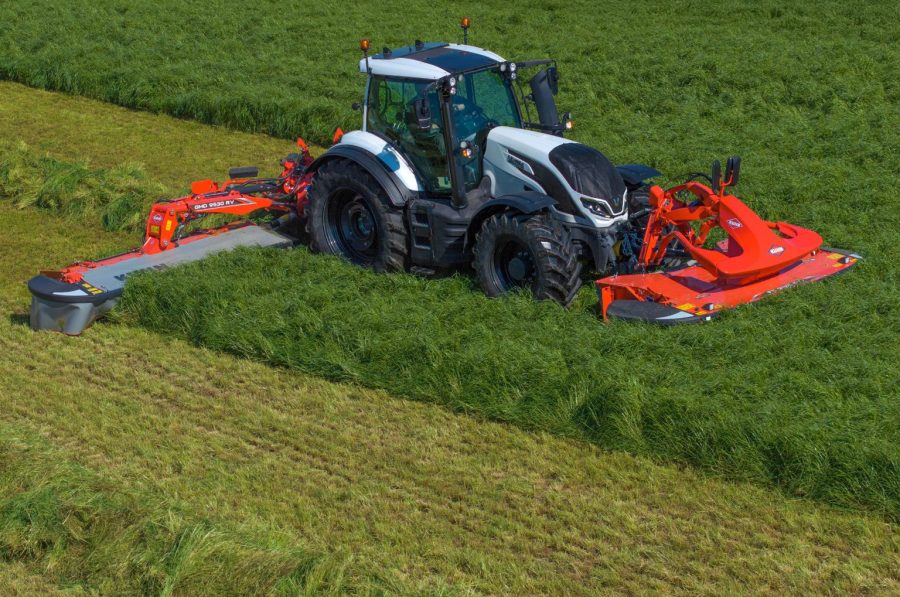

The compact design of the machine ensures optimal maneuverability both during transport and at work. Also, its limited weight is well adapted to tractors of 200 hp in most cases. With a working width of 9.10 to 9.50 meters in combination with a front unit, the GMD 9530 RV is designed for large farms, machinery cooperatives and contractors.
The mower is designed to work in the most demanding conditions, owing to its conveying auger, cutter bar with separate drive via u-joint and gearbox, as well as its automatic cam-type cut-out clutch and shear bolt safeties. In addition, the GMD 9530 RV is equipped with Hardox wearing parts which reduce maintenance operations and ensure extended service life.
Adaptability with its mowing unit offset system, allows the machine to set the swath width from 1.50 to 2 meters depending on the fodder. It is also possible to raise the grouper rear hoods hydraulically for wide spreading, swath delivery on one or both sides, for optimal drying and easier pick-up.
Because of its ease of use, the machine can be controlled using an intuitive in-cab control box. The user will be able to manage the mowing units, adjust the suspension or raise the grouper rear hoods.
Exclusive technologies
The GMD 9530 RV is fitted with renowned equipment of the Kuhn range such as the Optidisc Elite cutter bar which does not require maintenance. It is recognized for its robustness and benefits from the Fast-Fit quick knife attachment system. This cutter bar enables the best cut quality in all conditions.
The suspension adjustment via oleo-pneumatic accumulators offers excellent ground following and the ground pressure can be set to match the plot conditions. The Lift-Control system combines this suspension system with non-stop safety. In case of hitting an obstacle, the mower unit pivots rearwards, causing a reduction in the ground pressure to clear it. The mower automatically returns to the working position once the obstacle is cleared.
