Landini upgrades 6H Series

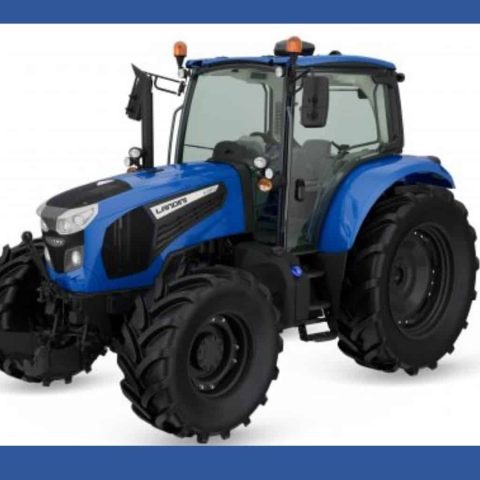

The Landini Series 6H T-Tronic is a new addition to the Argo Tractors family. One of the main innovations is the Stage V emission engine, thanks to DOC-DPF-SCR technology. Additional features include closed-centre hydraulics, suspended cab and axle.

The 6H T-Tronic is positioned in the Utility category, suitable for open field, haymaking and typical farm operations, enhancing performance and efficiency, optimising style and ergonomics.

The range offers two models, both powered by a 16-valve, 3.6-litre F36 engine: 6-125H, capable of producing 119 horsepower, rising to 127 in the 6-135H version. Fuel consumption is reduced by 10% thanks to innovative solutions and tank capacity has been increased to 170 litres (previously 150). Maximum torque has also been increased, with both models reaching 518 Nm at 1300 rpm.

The hydraulic system has been upgraded to a closed circuit (CCLS) of 110 litres/minute, with 38.5 litres for steering: a solution that allows greater hydraulic performance and increased productivity in front loader handling. At the same time, lower fuel consumption and less noise during operation are guaranteed. 34 litres of oil can be taken out, plus an extra 10 litres with optional tank to operate tipping trailers. The range also includes the “Power Beyond” system that ensures the use of the full 110 l/min flow rate. There are up to seven spool valves, two of which are mid-mounted and three mechanical, as well as a flow selector that doubles the outputs and a solenoid valve for implements that require certain flow rates, with the possibility of an additional two spool valves, also at the rear and also electronic.

The transmission ensures the correct speed for each specific application. This is thanks to the tried and tested 36+12 scheme with HML (3 speed under load) and Reverse Powershuttle with modulated engagement. The speeds become 48+16 thanks to the creeper. As an option, “Park-lock” – a brake system with a gear in the transmission – is available for greater safety.

Full frontal visibility is ensured by the installation of the Stage V after-treatment system and the SCR system under the bonnet, ensuring a compact tractor. Visibility is fully expanded by the 4-pillar cab and the sunroof with opening hatch for natural ventilation of the cabin. All front loader operations are therefore made easier, as is night work thanks to the 10 LED work lights.

Greater attention is given to operator comfort by the mechanical cab suspension system with 96 mm cylinders and by the ergonomic solutions adopted on the control console, which features a new joystick for loader, hitch and half-speed engagement. Comfort that is also demonstrated during road transport thanks to the option of a suspended front axle with brakes.

The electronically controlled rear power lift has a load capacity of 6,000 kilograms, while the auto PTO system activates/deactivates the PTO at a specific hitch height. There is also an anti-pitch system that dampens the stresses from uneven ground during transport.

Optional equipment includes the L30 front loader and front hitch that can lift up to 2,250 kilograms, with front PTO.

Thanks to the open architecture of the tractor, it is able to take a number of satellite guidance systems and the ISObus system – to make the tractor communicate with the implements – ensures maximum efficiency and fuel control.
