Factory-fitted slurry distributor
With the pro-Pack for the Catros compact disc harrow, Amazone offers an integrated solution for optimized incorporation of organic nutrients, such as slurry or fermentation residues during soil tillage. The Catros pro will now be offered ex-works with a Vogelsang slurry distributor fitted as standard. At the heart of the new system is the SynCult […]
With the pro-Pack for the Catros compact disc harrow, Amazone offers an integrated solution for optimized incorporation of organic nutrients, such as slurry or fermentation residues during soil tillage. The Catros pro will now be offered ex-works with a Vogelsang slurry distributor fitted as standard.

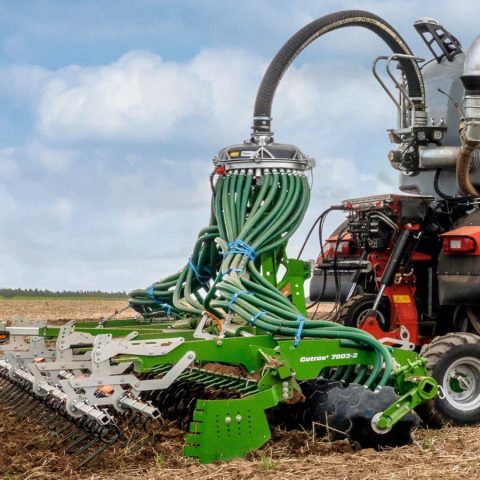

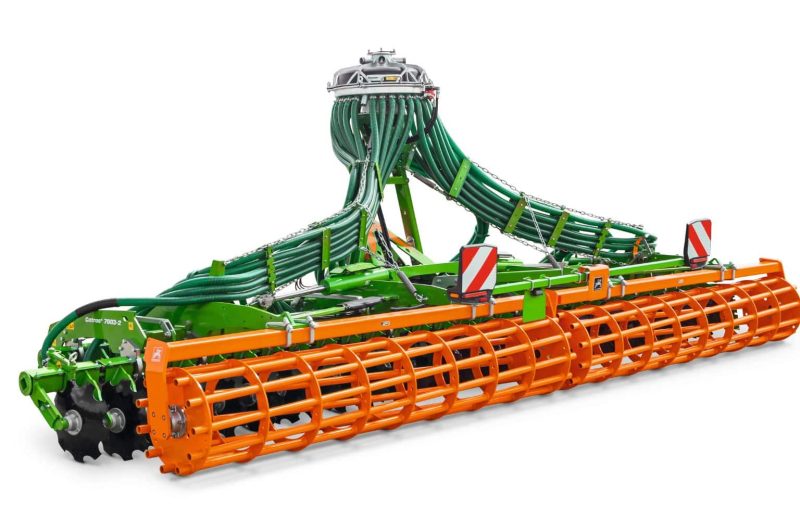

At the heart of the new system is the SynCult DosiMat DMX slurry distributor from Vogelsang. The system is characterized by high application rates of up to 10,000 l/min and a consistently high accuracy of distribution, regardless of the flow rate. The distributor and all the hoses down to the first row of discs are installed in the factory by Amazone. This ensures a fully-integrated and ready-to-use complete solution with optimally routed hoses.
The slurry is spread precisely and close to the ground just behind the first row of discs which have opened the ground so that the band of slurry is deposited directly into the open slit. The second row of discs then closes the soil again. This process ensures particularly low-loss application with minimal ammonia emissions and optimal nutrient utilization.
The incorporation is carried out by the 510 mm coarse-serrated discs, which enable working depths between 5 and 14 cm. Thanks to the individually suspended discs, the Catros pro adapts optimally to the ground contours whilst offering maximum throughput of organic matter.
The maintenance-free, specially sealed disc bearings and high-quality powder coating reliably protect the implement from corrosion and ensure high durability throughout its entire service life. A central lubrication system is available as an option, which automatically lubricates the hinge-points and the slurry distributor at set intervals. This significantly reduces maintenance and increases daily productivity.
The Smart Frame System makes the Catros pro easy to operate. It enables fully hydraulic adjustment of the working depth directly from the cab, without having to realign the frame via the top link. This allows the driver to react flexibly to changing ground conditions at any time. Additionally, the passage through the implement increases automatically as the disc carriers are rotated when working deeper. This enables a compact design combined with high operational reliability, even in organically rich, or heavy, damp, soil conditions.
Added flexibility

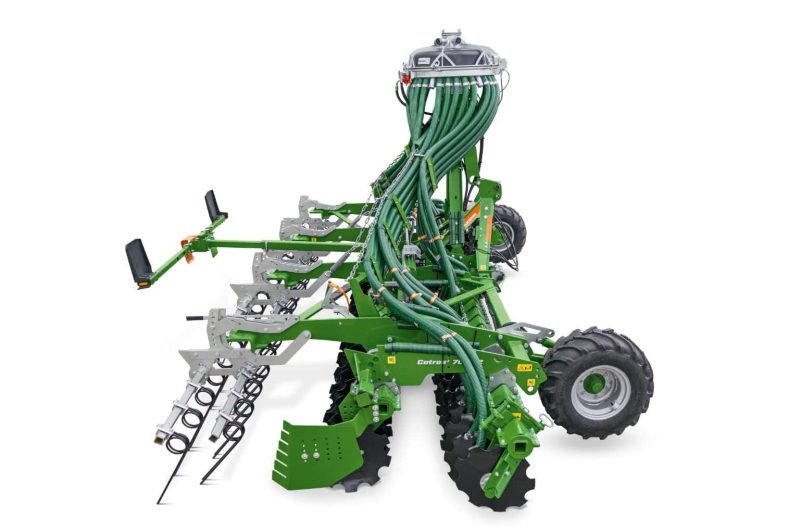

Amazone offers a rear roller which has been specially tailored for these conditions in the shape of the SW 600 pro cage roller. In addition, all the other rollers from the portfolio are available. The mounted Catros pro models, in working widths of 6 and 7 meters, can alternatively be equipped with the double harrow. This promotes faster drying and warming of the soil. At the same time, the machine weight is reduced, which also reduces the lifting power required. Depth control is provided by the front-mounted support wheels.

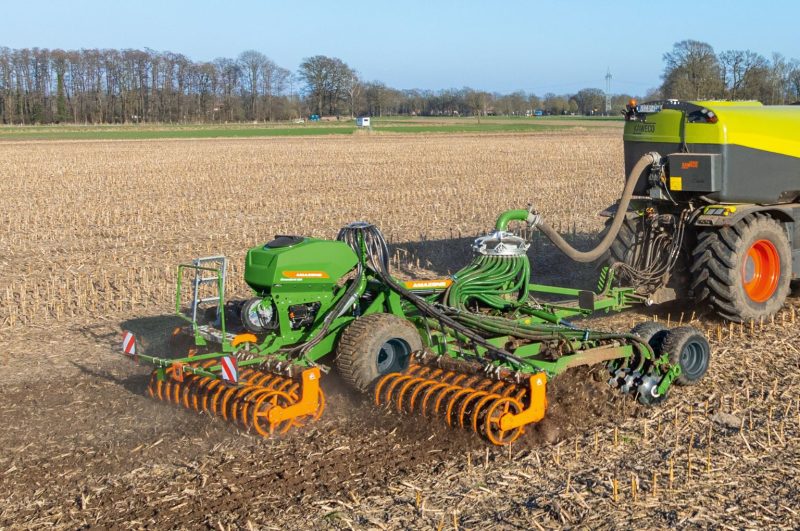

For added flexibility, catch crops can be sown in the same pass using the GreenDrill mounted seeder box. Depending on the model, hopper capacities of either 200 or 500 liters are available.
The Catros pro product range includes three-point linkage mounted implements in working widths of 5, 6 and 7 meters. These well suit both trailed and self-propelled slurry tankers. The range is complemented by trailed models with center running gear in working widths of 8 and 9 meters. They are designed specifically for high-capacity twin- and tri-axle self-propelled tankers and enable the high work rates needed during what is often a short application period.
