Dewulf redesigns cleaning unit Kwatro

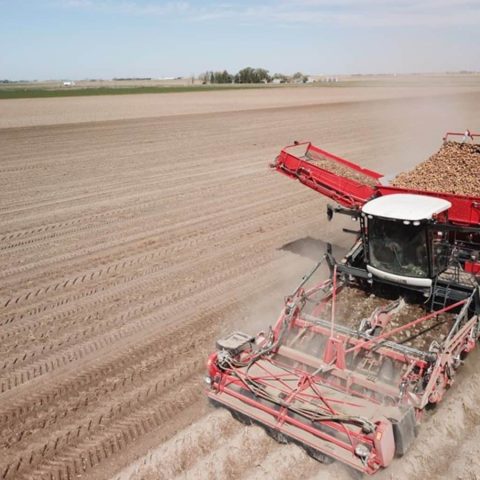

The Dewulf 4-row Kwatro Xtreme harvester is well-known for its constriction-free sieving path. The harvester has until now been produced with a straight hedgehog unit, immediately followed by a single Flexyclean cleaning unit. This is changing today, as market demand for alternative cleaning options has proved to be high. The hedgehog has been replaced by a new system. Two module options are available.

To meet market demand for a potato-friendly machine, Dewulf decided to add an extra dimension to the Kwatro Xtreme. More specifically, the focus of this development was the product flow inside the machine, which no longer has a hedgehog unit, yet still offers sufficient cleaning options.

As indicated, product friendliness is at the core of this development, as the two sieving conveyors and a third, short sieving conveyor are immediately followed by the cleaning module. Because there is no integrated hedgehog unit, there is no change in direction of the potato flow. Thus, Dewulf designed two additional variants under the name Kwatro Xtreme Flow, in which the straight hedgehog unit has been replaced with a new module.

New, longer Easyclean module

The redesigned, double Easyclean module consists of 7 (4+3) active smooth cleaning rollers alternated with 9 Easyclean rollers. To perform its work as precisely and delicately as possible, the Easyclean module is divided into two groups of linked, active smooth cleaning rollers, the first having four and the second three. This brand-new, mechanical regulation system allows users to control the speed, height, opening and direction of rotation of both groups of drive rollers separately. Moreover, the speed of the Easyclean rollers can also be easily controlled from the cab. In addition, the degree of cleaning can be set extremely precisely by adjusting the inclination of the module between 0 and 12 degrees. This solution is tailor-made for dry conditions with clods, for example.

Combination of axial and Easyclean modules

The second variant Dewulf offers, consists of a combination of 36 axial rollers and an Easyclean unit. The speed of the axial rollers is adjustable and, together with the inclination of the Easyclean unit, adjustable between 0 and 12 degrees. In turn, the Easyclean module is fitted with 2 active smooth cleaning rollers alternated with 3 Easyclean rollers. Analogous to the first innovative module, here too the speed, height, opening and direction of rotation of the drive rollers, as well as the speed of the Easyclean rollers, can be adjusted from the cabin to accommodate the conditions. This solution is suitable for customers who harvest in relatively wet conditions.

Best of Kwatro Xtreme remains

The celebrated aspects of the Kwatro and Kwatro Xtreme have certainly not been changed. The familiar, proven concept of front harvesting ensures that potato ridges remain undamaged. This stable master of the field also harvests at 4 x 90 cm with no constrictions in the sieving path, a unique feature in its market segment. The sieving capacity is also paired with a 11-tonne bunker capacity. To perform well in wet conditions, Dewulf relies on the Claas 900 mm wide crawler track system combined with a single rear wheel. This steered wheel also provides unprecedented manoeuvrability and low maximum ground pressure of 1.4 kg/cm². As the traction can be adjusted per track/wheel, it is almost always possible to harvest, even in the worst conditions and types of weather.
