Boosting combine harvester potential
Greater capacity, reduced component stress and faster stalk decomposition, are among the key customer benefits offered by the new Case IH C500 series corn headers. They are designed for full compatibility with all Axial-Flow and AF combine series, and include the largest corn header ever offered by Case IH in Europe. Alongside the C512-75 (12 […]

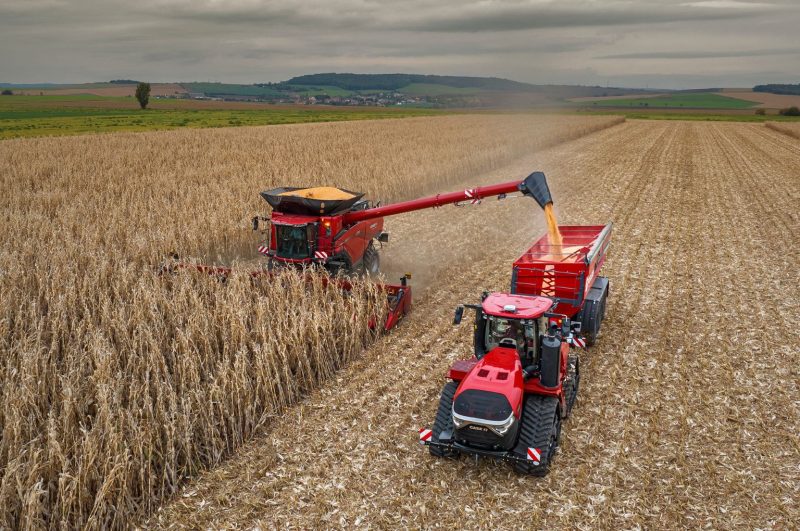

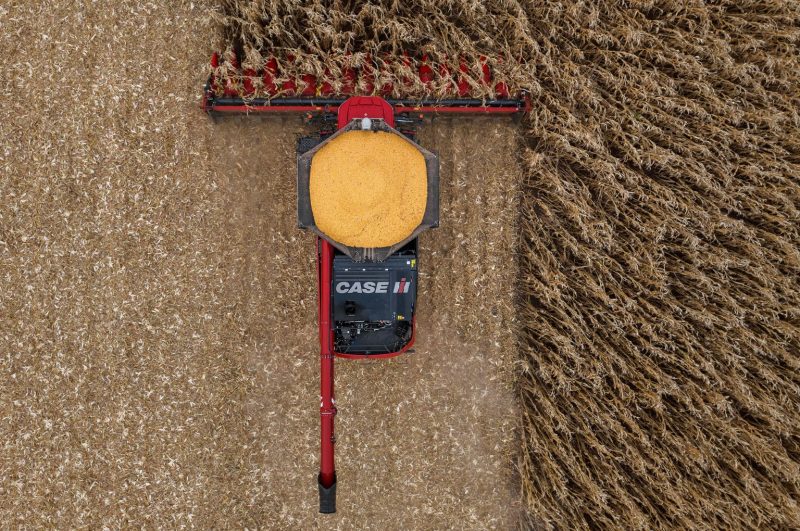

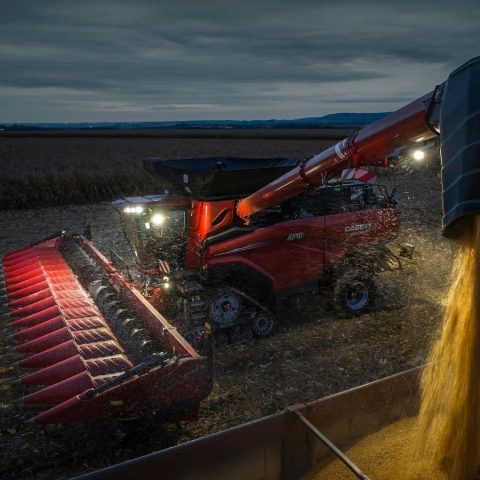

Greater capacity, reduced component stress and faster stalk decomposition, are among the key customer benefits offered by the new Case IH C500 series corn headers. They are designed for full compatibility with all Axial-Flow and AF combine series, and include the largest corn header ever offered by Case IH in Europe.
Alongside the C512-75 (12 rows with 75-cm spacing), Case IH introduces the new C516-75 – its first 16-row corn header with 75-cm row spacing. This model is specifically designed to meet the requirements of European farmers and to maximize the performance of the latest AF series combines. The C516-75 delivers several key advantages, including a significantly reduced overall weight of the picking units. In addition, operators benefit from simplified maintenance procedures and minimized downtime, ensuring greater efficiency and productivity in the field.
Other features on C500 corn headers include new dual-action deck plates. These can be altered hydraulically from the cab, providing safe, simple and convenient adjustment without leaving the operator’s seat, to quickly adapt to differing crop conditions.
The C500 models feature a large-diameter cross auger, with a 60 cm flighting diameter and a 62.5 cm pitch, ensuring smooth feeding under all harvest conditions. A dual driveline provides separate drives to the row unit and integral chopper. This improves load management of the individual drive components and gearboxes, maximizes power distribution efficiency, and enhances overload protection. The new C500 Series headers feature an advanced monitoring system with sensors on the main toolbar that detects both chopper and row unit slip clutch activation through vibration and frequency signals. When triggered, operators receive an immediate alert in the cab.
